Dental NSK Style Wrench E-type 1:1 Slow Low Speed Handpiece Kit 4 Holes EX-203C

Features:

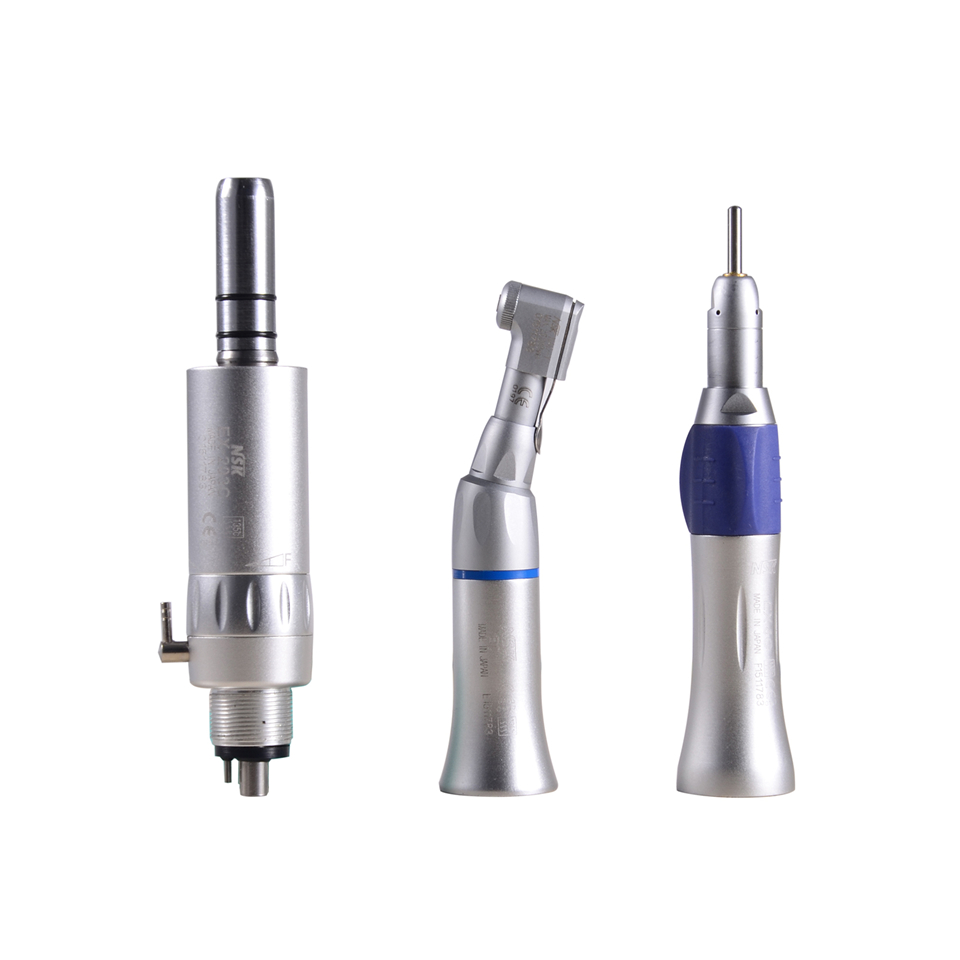

This complete kit includes low speed handpiece contra angle model, low speed handpiece straight model and low speed dental air motor.

Features:

- E-type connector

- Wrench type

- Precise technology, Steady, no vibration while revolving, offering a steady operation.

- Suitable for any E-type handpiece accords with ISO standard

- 135°C Autoclavable, suitable for both steam and chemical autoclave

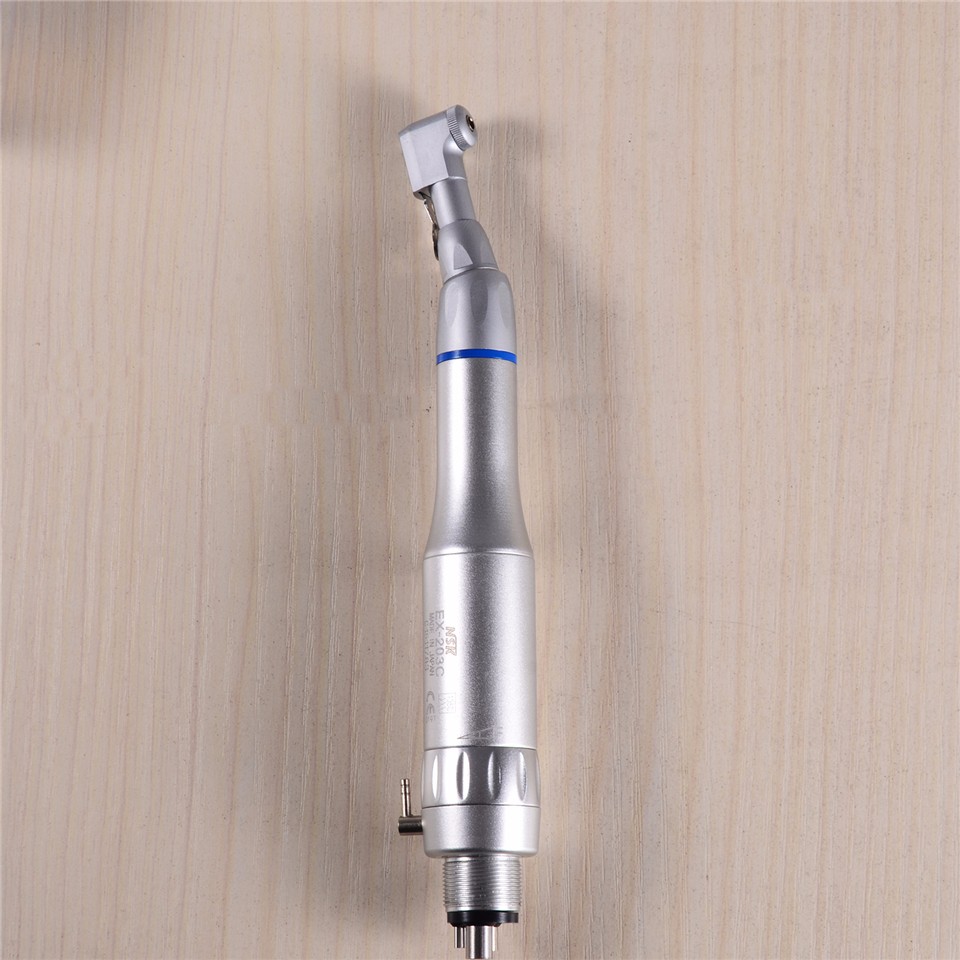

Contra angle handpiece

- Low Speed 22,000-27,000 rpm.

- The shank of the instrument mounted therein is 2.35 mm

- Fastening of the instruments with a turning latch

- Autoclavable 135°C

- For any lab or E-type motors

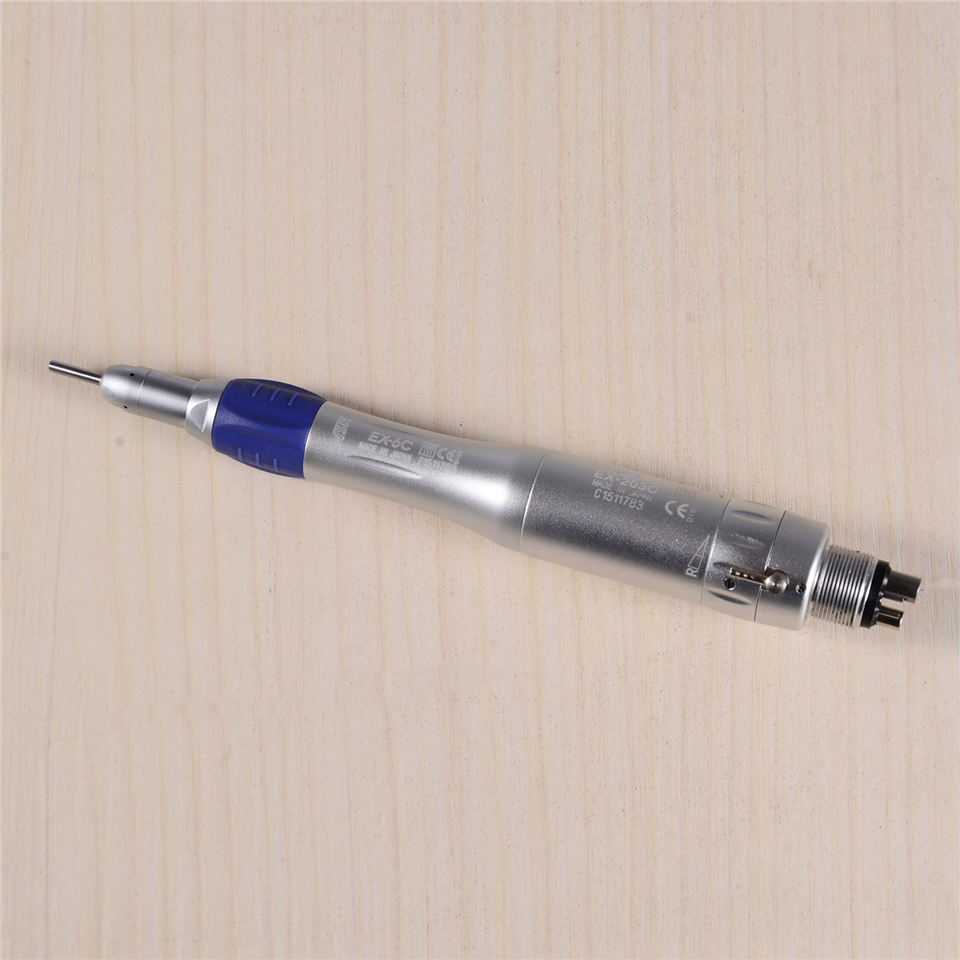

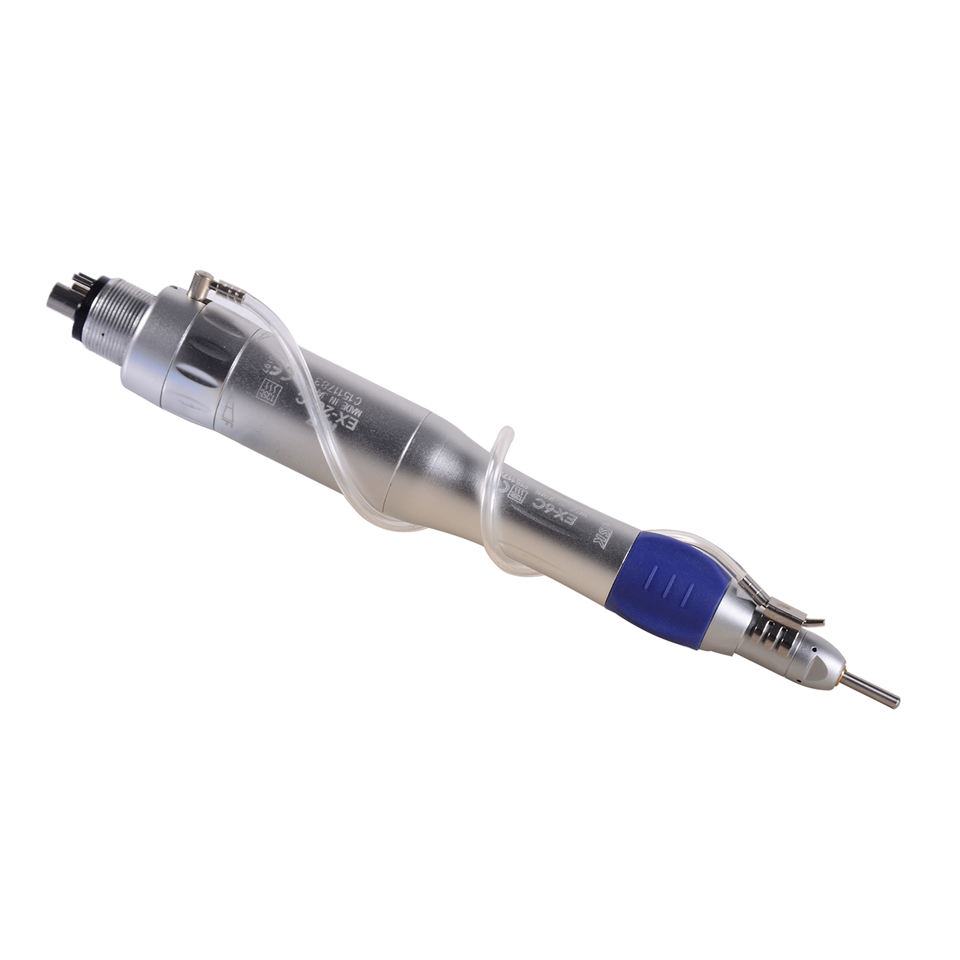

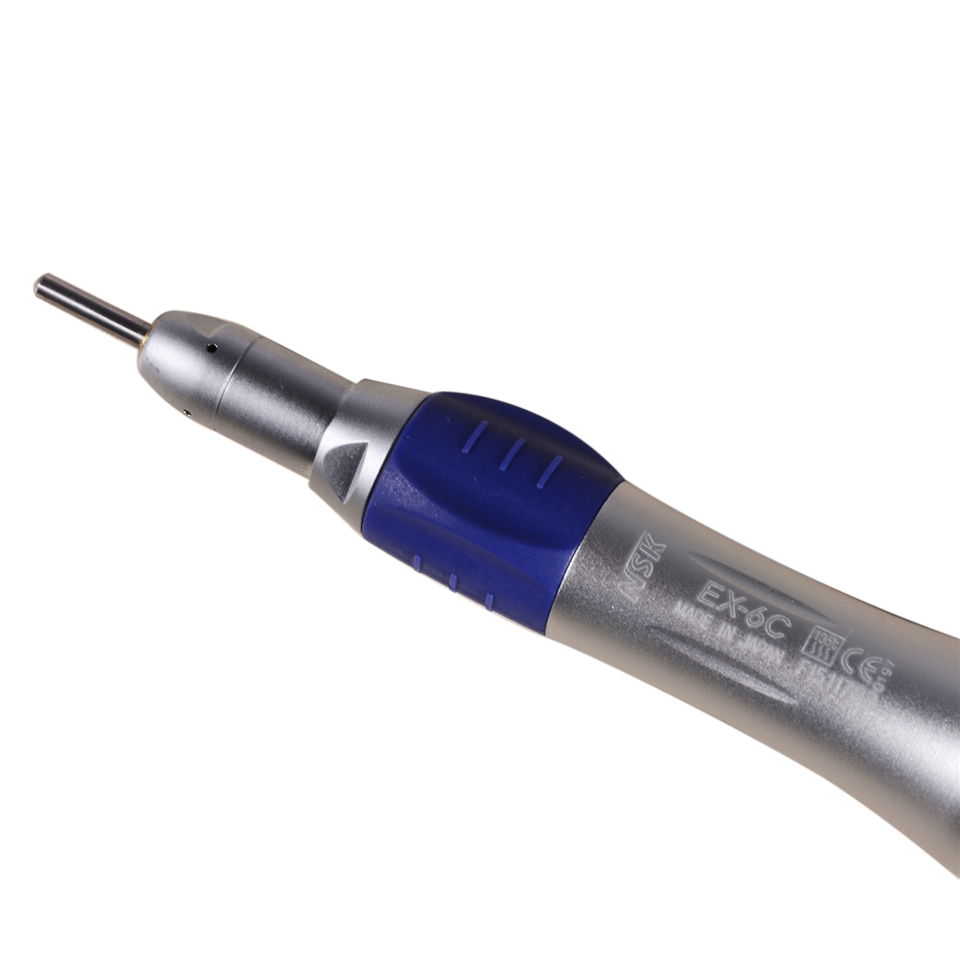

Straight Nosecone

- Working pressure: 0.3MPa

- 0.25MPa(Measure meter is installed at the end of air motor to measure the air pressure).

- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)

- Noise: ≤68dB

- Air consumption: about 56L/min

- Ratio: 1:1

- Max speed of contra angle: 25000rpm/min.

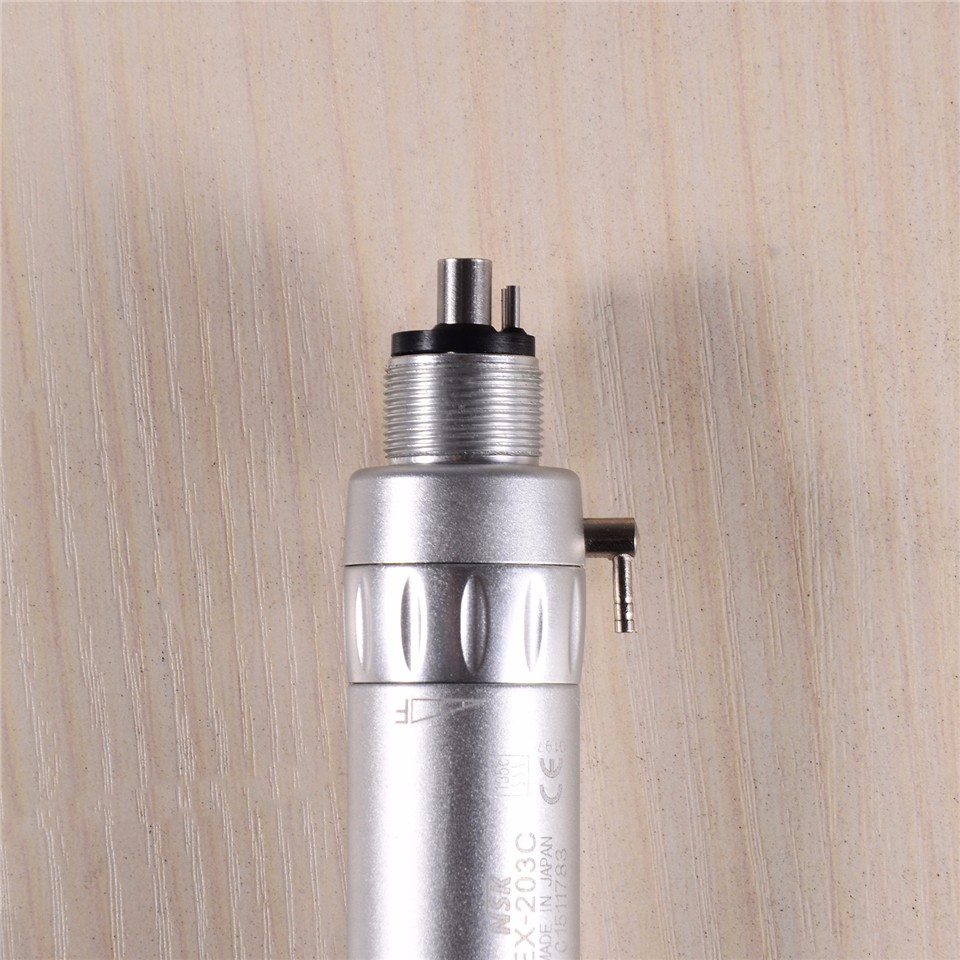

Air Motor EX-203C

- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)

- 1:1 Direct Drive

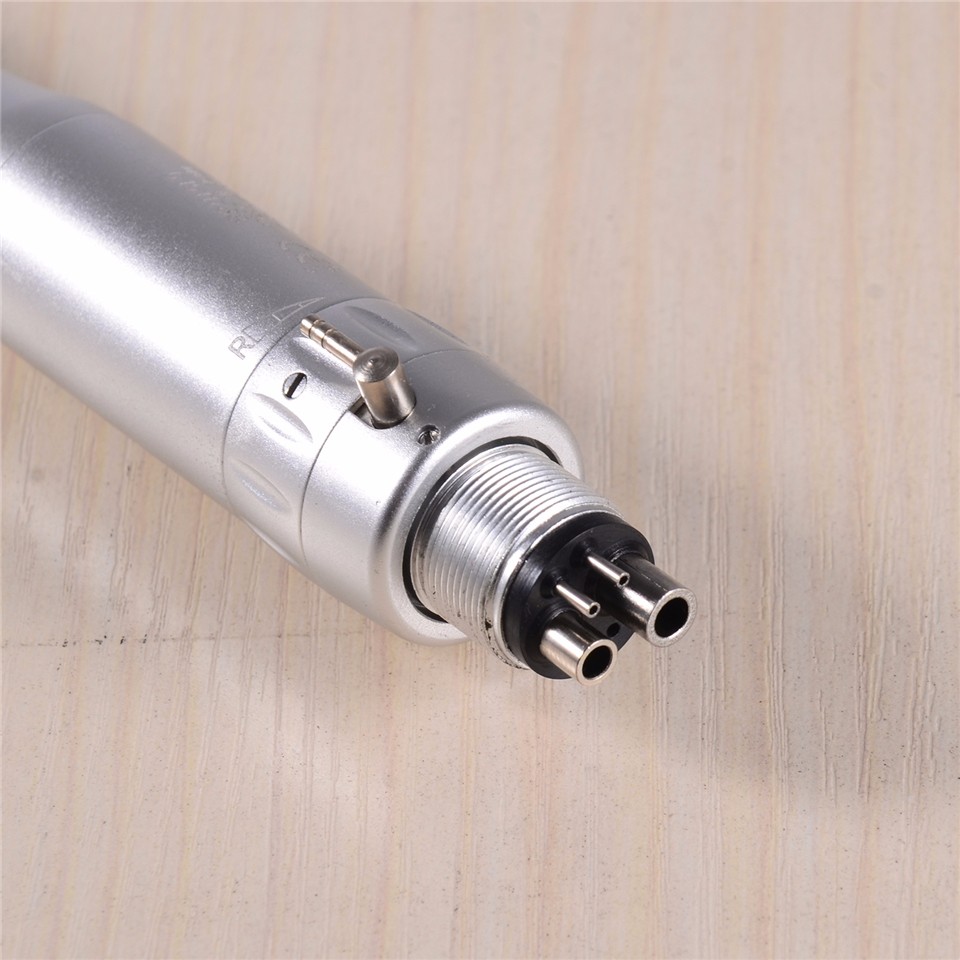

- Borden 2 holes/Midwest 4 holes

- Max speed 20,000 min-1

Specifications

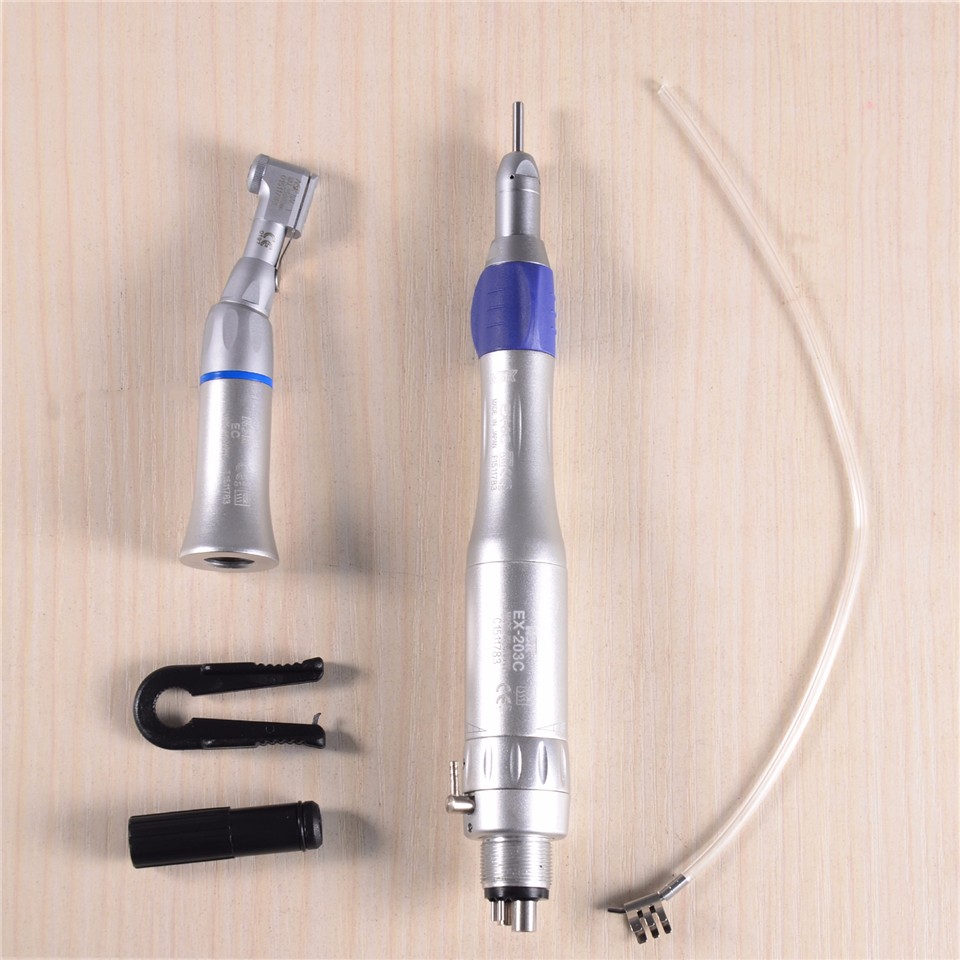

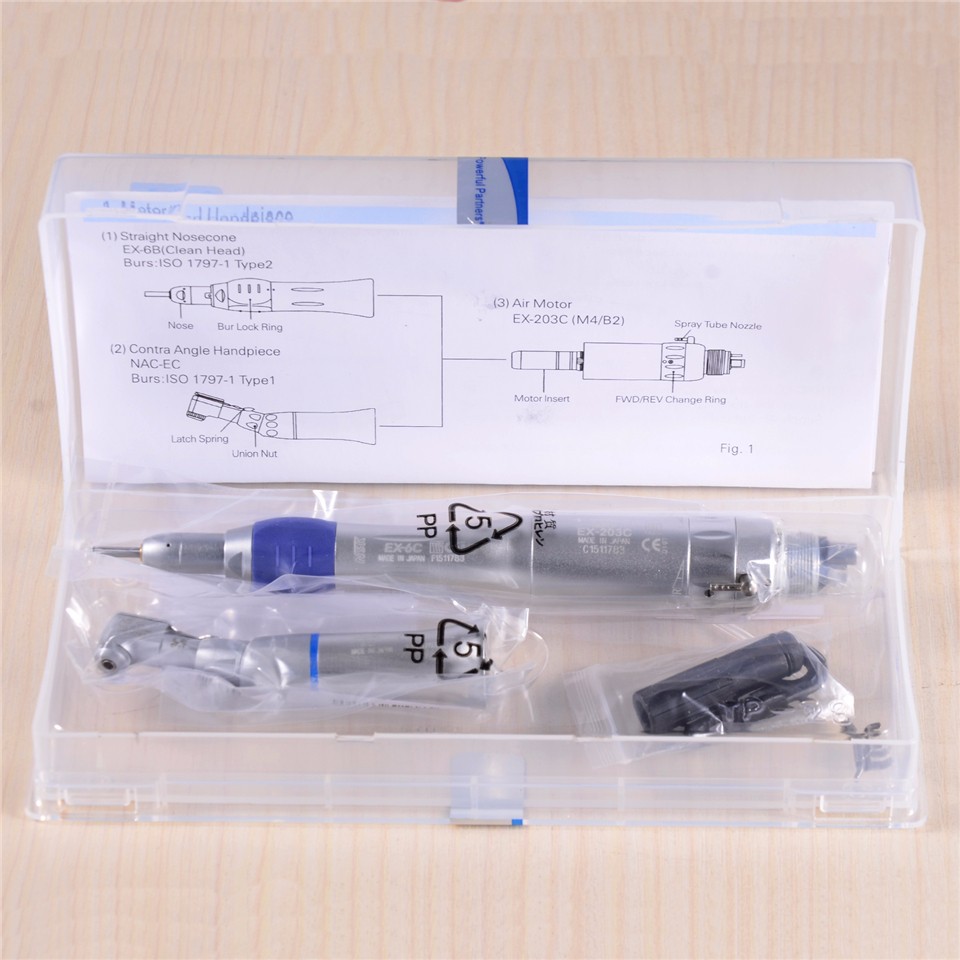

Packing List:

- E-type air motor EX-203C 4-hole: 1 each

- Straight nose cone: 1 each

- Contra Angle handpiece: 1 each

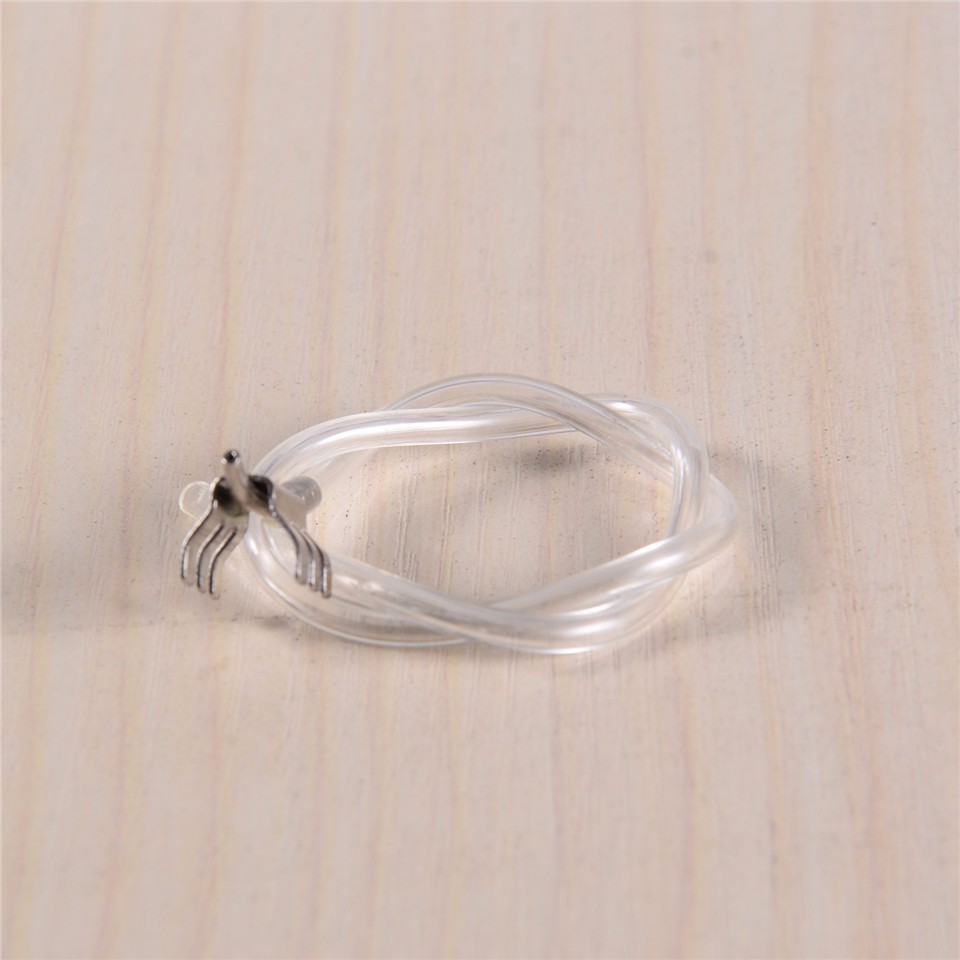

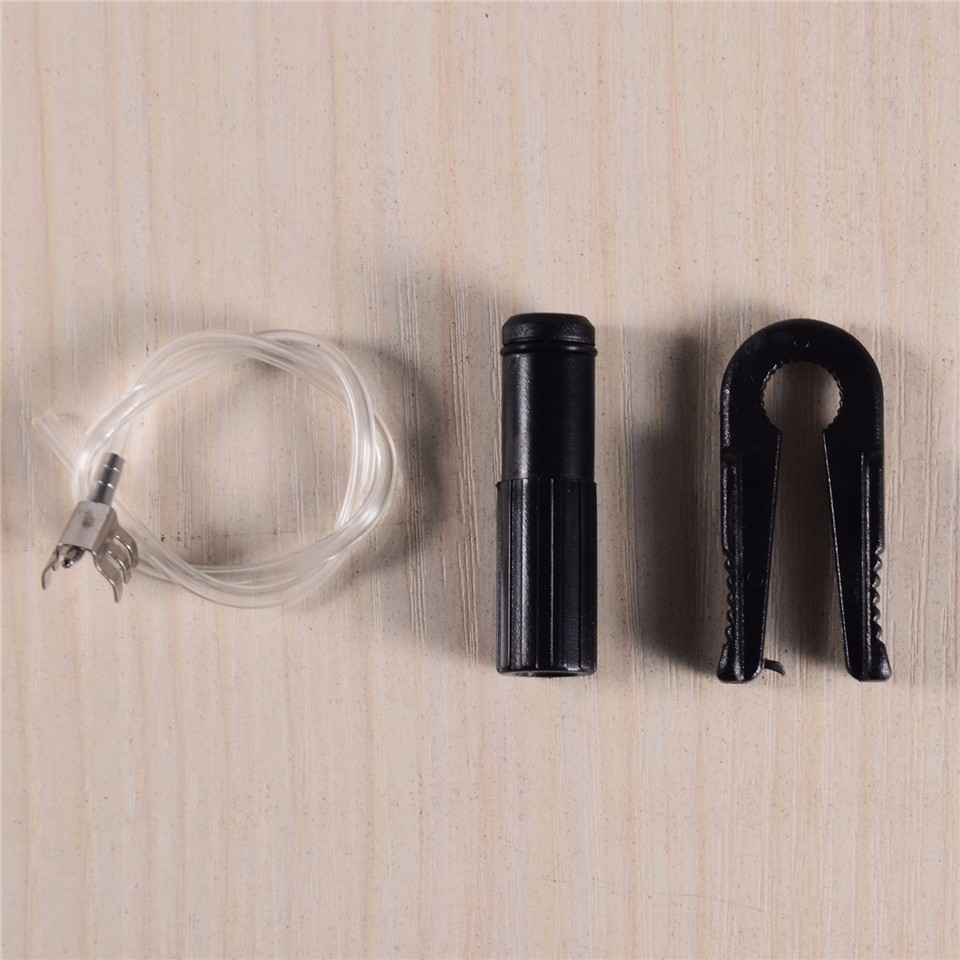

- Water spray nozzle: 1 each

- Oil spray nozzle: 1 each

- CAP Spanner: 1 each

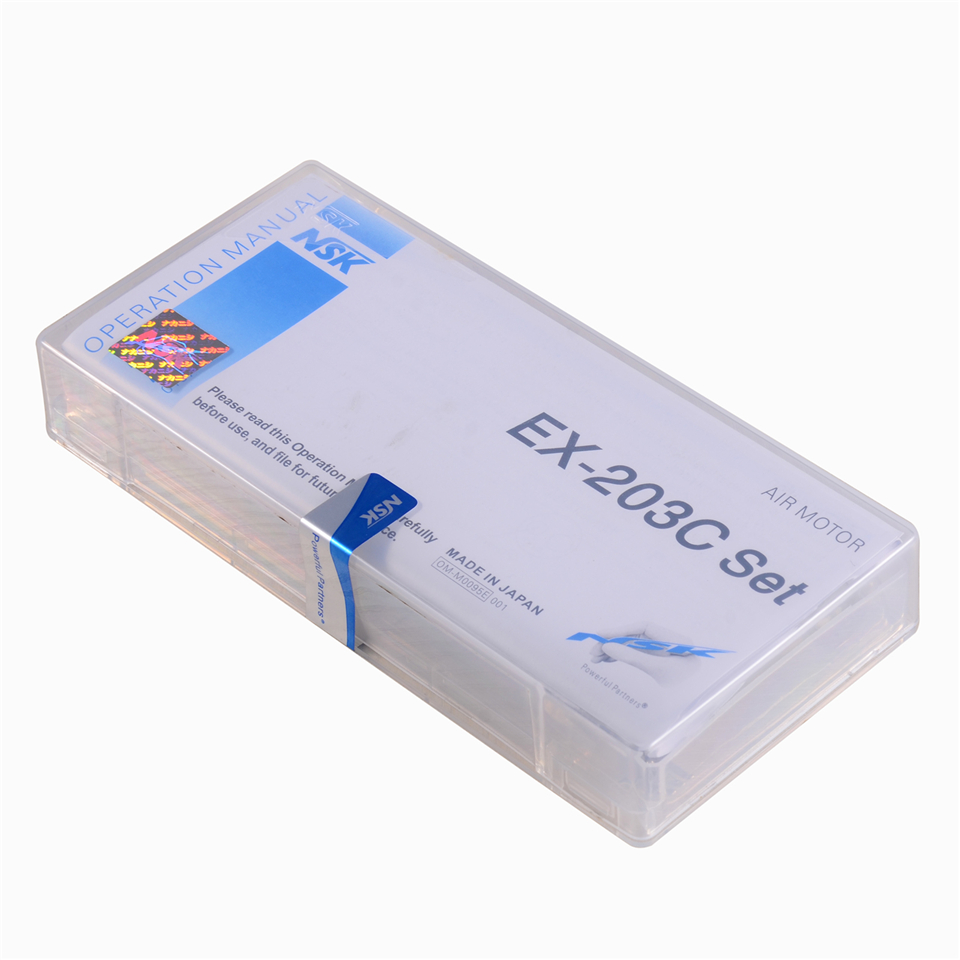

- English manual: 1 each
